Product Specifications - LV429386 - Square D Shunt Trip
-
Part Number:
LV429386 -
Manufacturer:
-
Family:
Compact -
Volt:
130
-
Category:
-
Type:
LV4
Dimensions
-
Dimensions (HxWxD):
45 x 63 x 43 -
Weight:
0.28 lbs
Standards

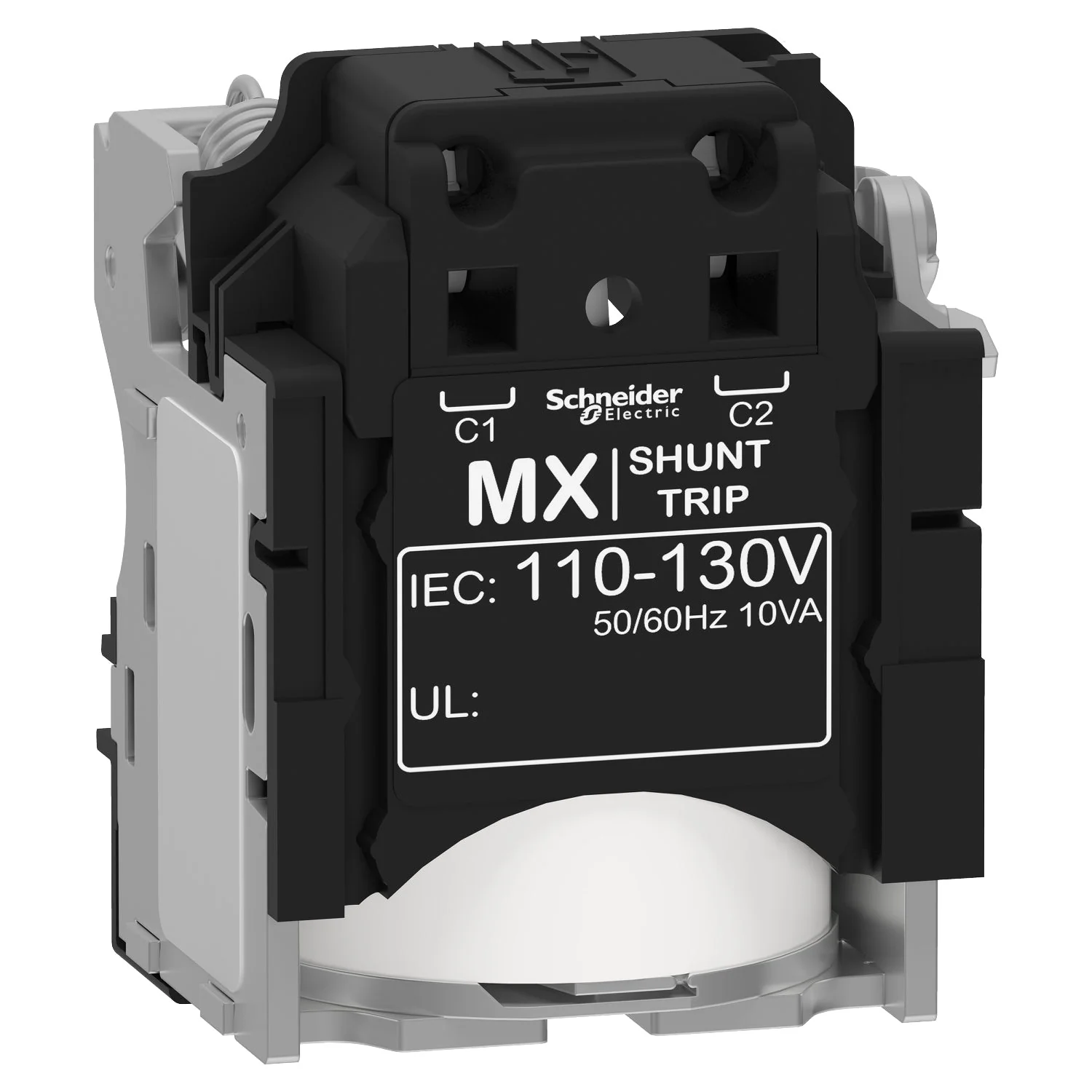

Product Description - LV429386 - Square D Shunt Trip
This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 110 to 130 VAC 50/60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. This shunt trip is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
