Product Specifications - GV2ME063 - Square D Starter
-
Part Number:
GV2ME063 -
Manufacturer:
-
Pole:
3
-
Category:
Dimensions
-
Dimensions (HxWxD):
3.98 x 1.77 x 3.09 -
Weight:
0.62 lbs
Standards

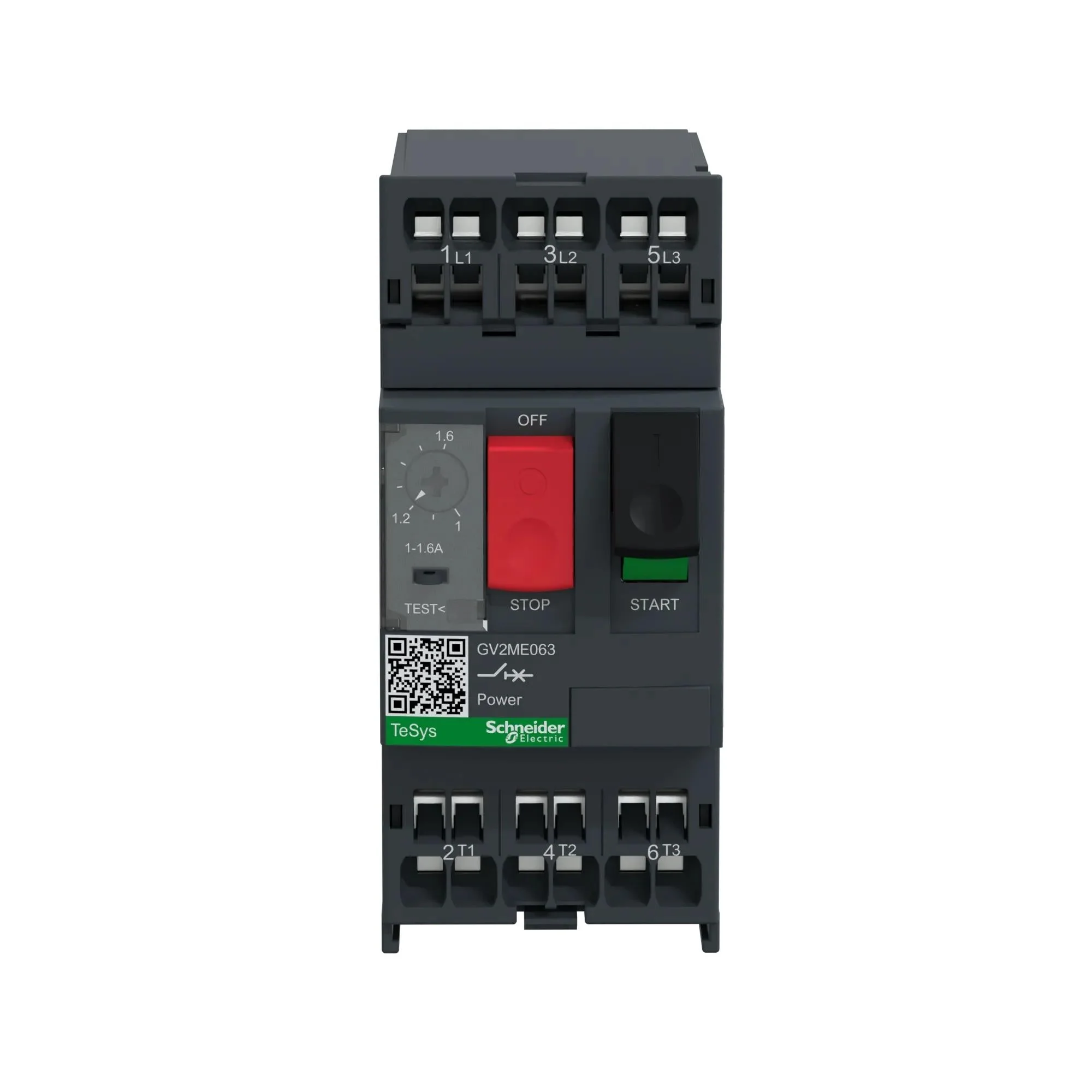

Product Description - GV2ME063 - Square D Starter
TeSys GV motor circuit breaker, 3 poles (3P), 1.6A/690V, for 3-phase motor applications 0.37-0.55kW@400V. It provides a thermal-magnetic protection with a thermal setting range 1-1.6A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by spring terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Overview
Product Specifications - GV2ME063 - Square D Starter
-
Part Number:
GV2ME063 -
Manufacturer:
-
Pole:
3
-
Category:
Dimensions
-
Dimensions (HxWxD):
3.98 x 1.77 x 3.09 -
Weight:
0.62 lbs
Standards
Product Description - GV2ME063 - Square D Starter
TeSys GV motor circuit breaker, 3 poles (3P), 1.6A/690V, for 3-phase motor applications 0.37-0.55kW@400V. It provides a thermal-magnetic protection with a thermal setting range 1-1.6A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by spring terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
