Product Specifications - VC4GUN - Square D Switch Disconnector
-
Part Number:
VC4GUN -
Manufacturer:
-
Category:
Dimensions
-
Dimensions (HxWxD):
7.60 x 6.46 x 5.20 -
Weight:
2.05 lbs
Standards
Product Description - VC4GUN - Square D Switch Disconnector

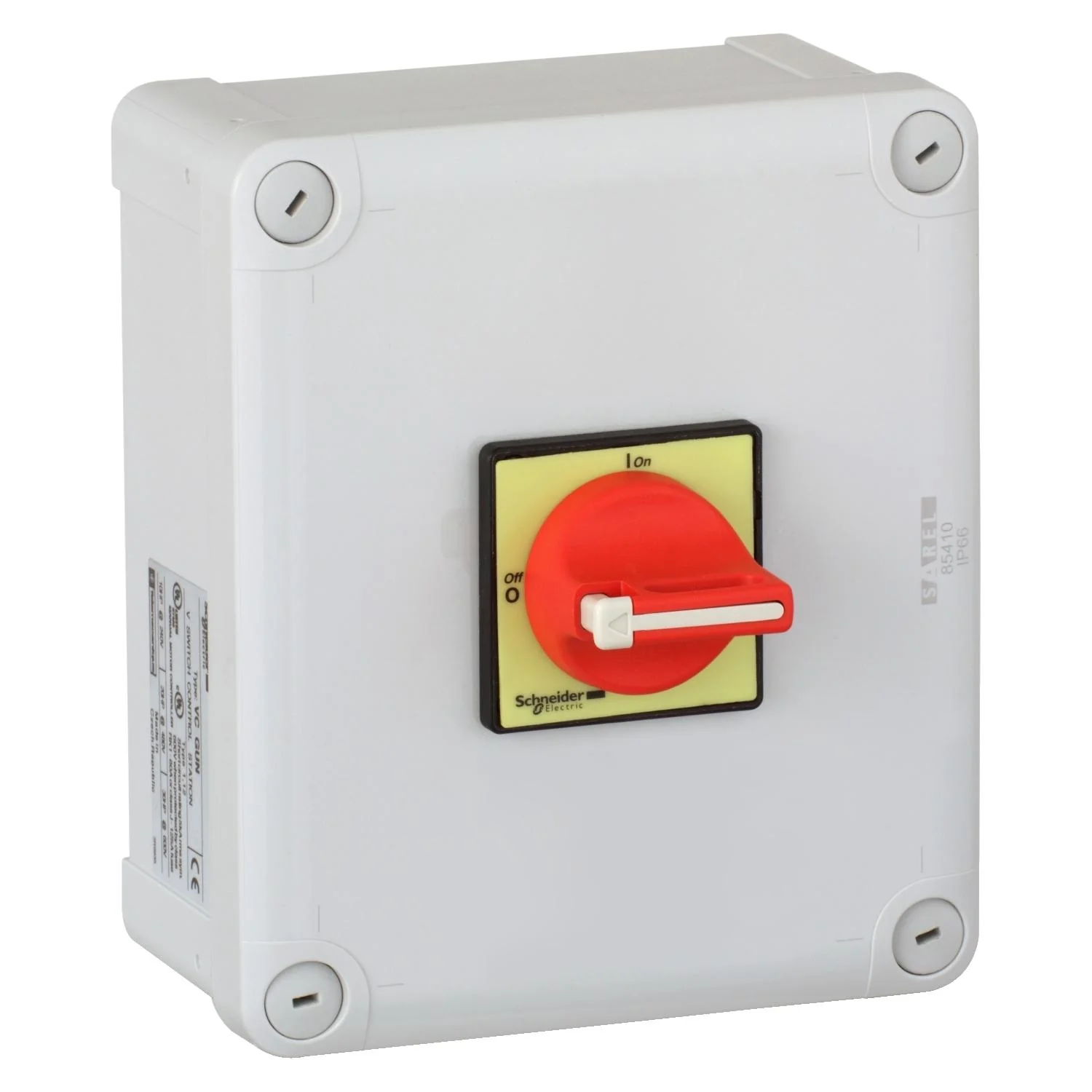

VC4GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for emergency stop switching in motor applications 40HP@600V. It provides an IP65 / NEMA type 12 enclosure, V4 Vario switch disconnector and red & yellow operator. VC4GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 40HP@600V. It includes a V4 Vario switch disconnector rated 63A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red & yellow operator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHs/Reach). Enclosed switch disconnector including a 3-pole switch-disconnector Vario V4 model. Conforming to IEC (IEC 60947-4-1, IEC 60204) and UL/CSA (UL 508 and CSA 22.2 n° 14). NEMA type 12 enclosure rating, IP65 protection degree, sealable. Operating red handle for emergency stop, padlockable. Connections directly on the screw clamp terminals of the switch. Possible attachment of 2 add-on poles to the switch body , main (VZ4), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20).
