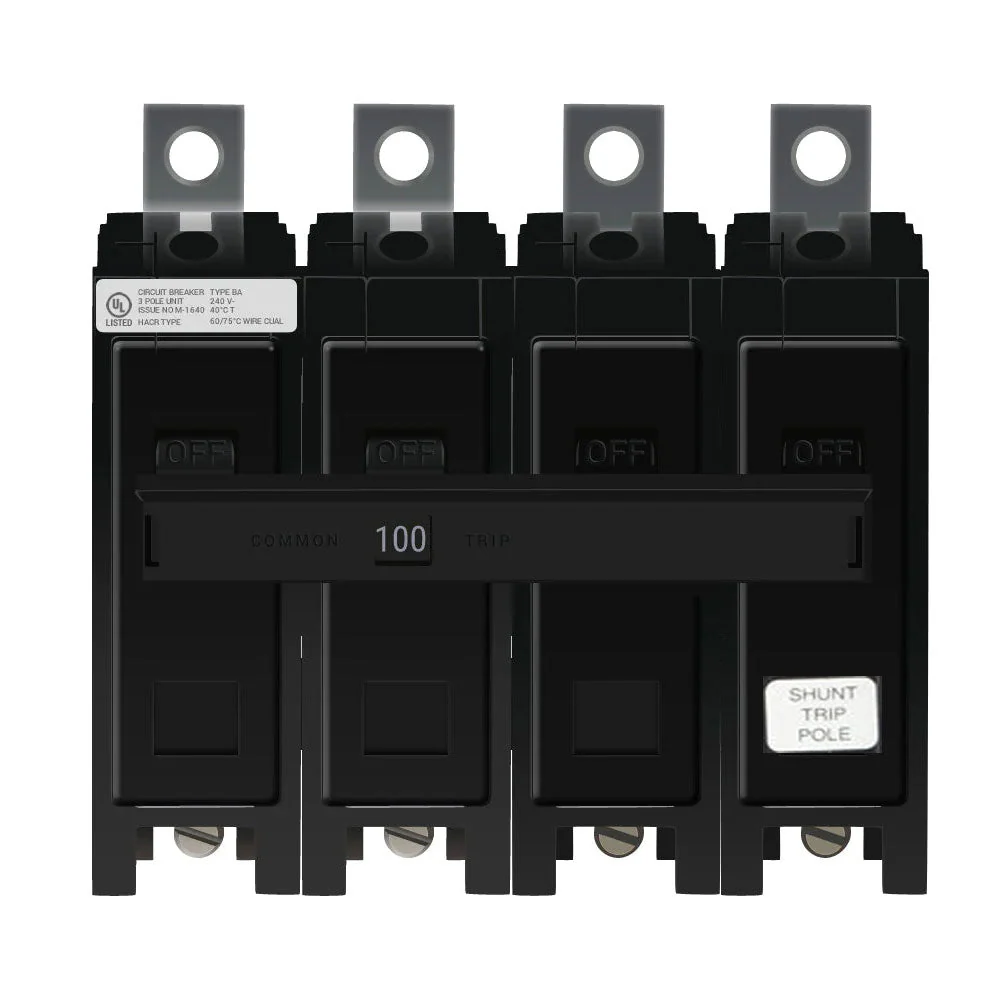

BAB3100HS - Eaton - 100 Amp Shunt Trip Circuit Breaker

BAB3100HS - Cutler-Hammer Bolt-On Molded Case Circuit Breaker

This Eaton Cutler-Hammer Shunt Trip Breaker is a compact three-pole thermomagnetic circuit breaker rated at 100 amps at 40 degrees and 240 Vac, with a breaking current rating of 10,000 amps, a 120V, 208V, 240V shunt trip, the switch is UL listed and CSA certified.

Specifications:

• Product Name: Quicklag Industrial Thermal-Magnetic Circuit Breaker
• Product Length: 4 in
• Product Height: 3.3 in
• Product Width: 3.7 in
• Product Weight: 1.25 lb
• Certifications: CSA Certified , UL Listed
• Catalog Notes: HACR rated
• Mounting: Bolt-on
• Special Features: 120V, 208V, 240V shunt trip
• Interrupt Rating: 10 kAIC
• Type: Quicklag
• Circuit Breaker Type: BAB
• Quantity: Q32
• Voltage Rating: 240V
• Amperage Rating: 100A
• Trip Type: Non-Interchangeable
• Number Of Poles: Three-pole
• Authentic Eaton/Cutler-Hammer Product
• Dimensions (H x W x L): 3.3" x 3.7" x 4"
• 3 phase
