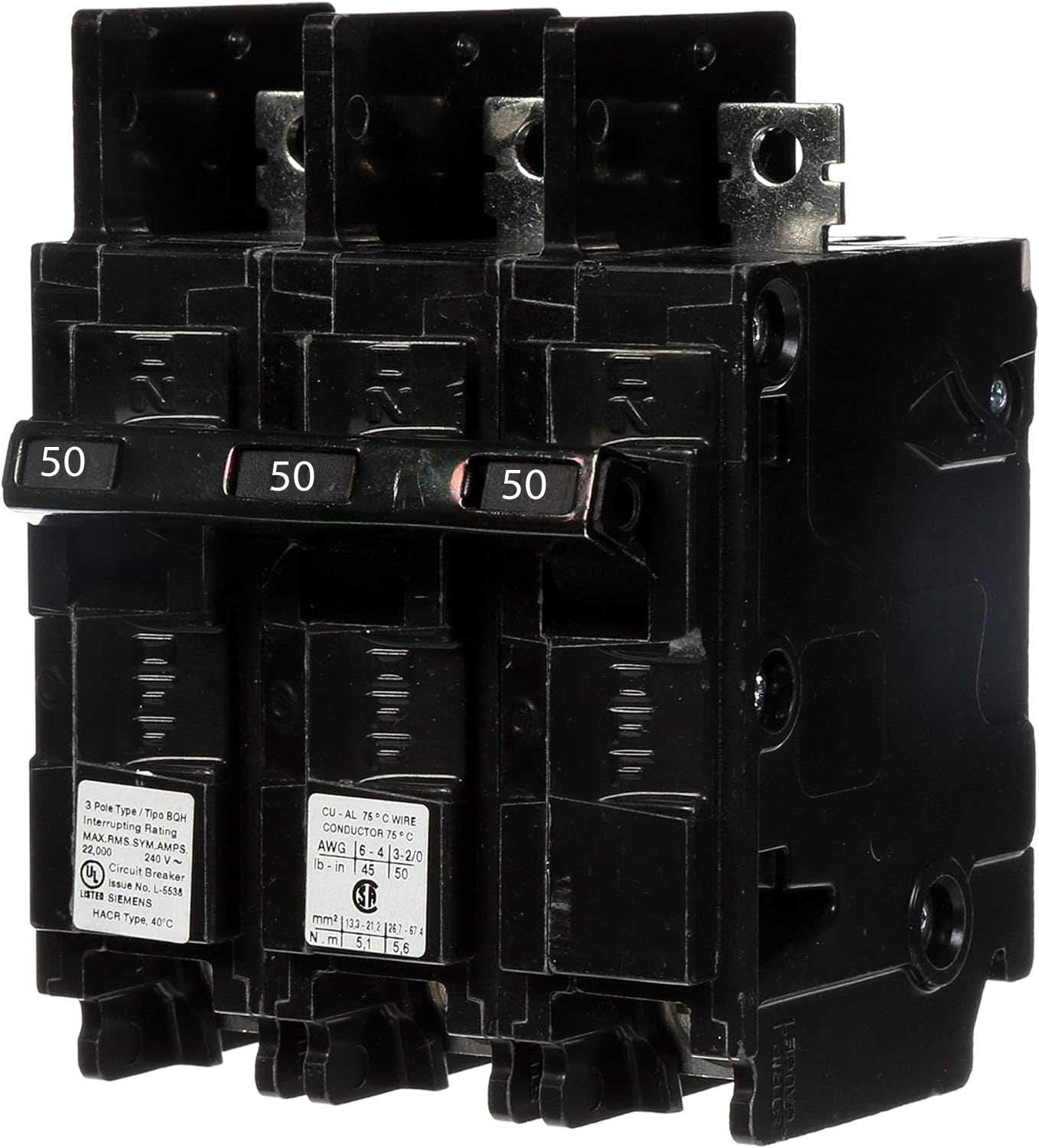

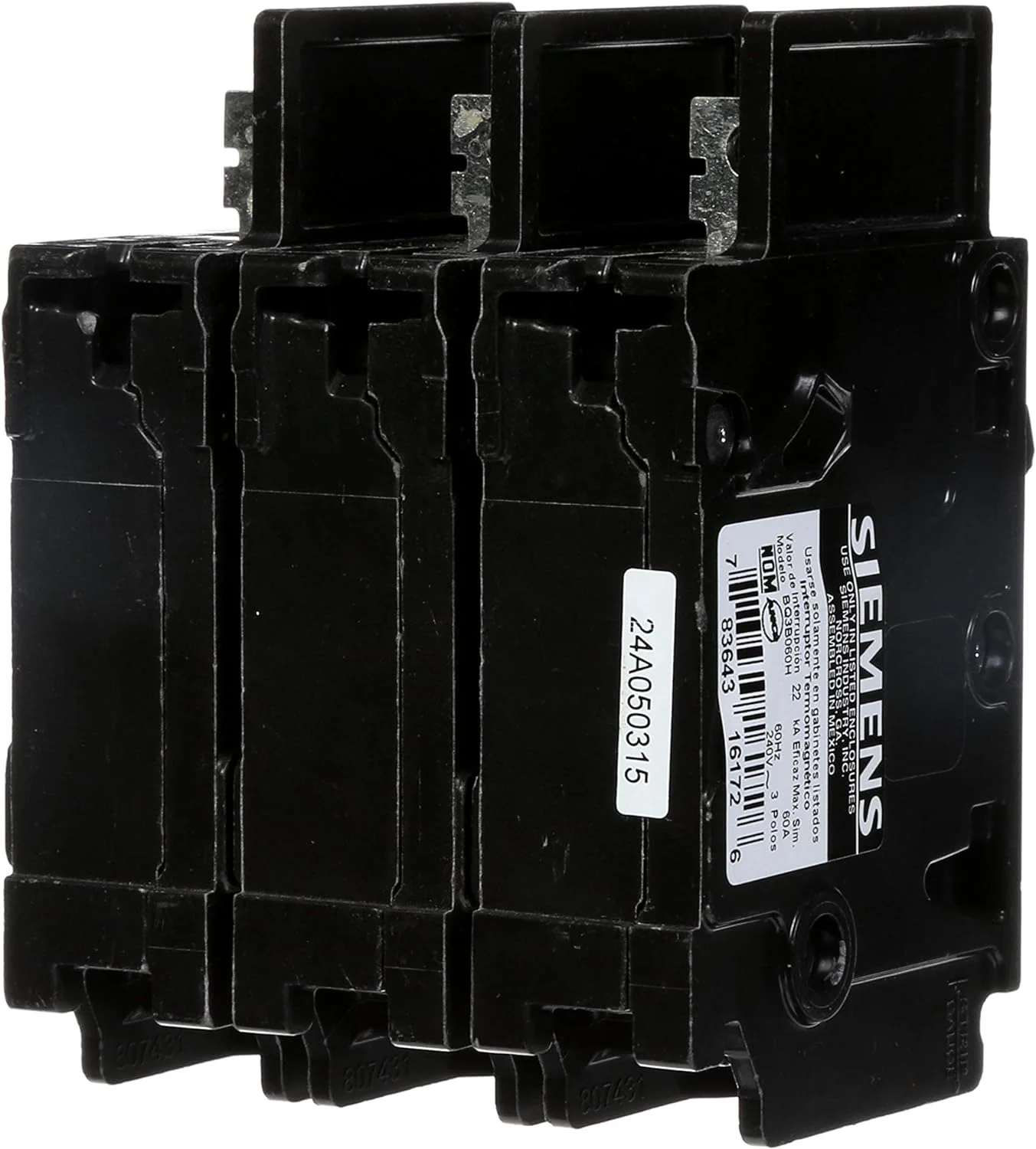

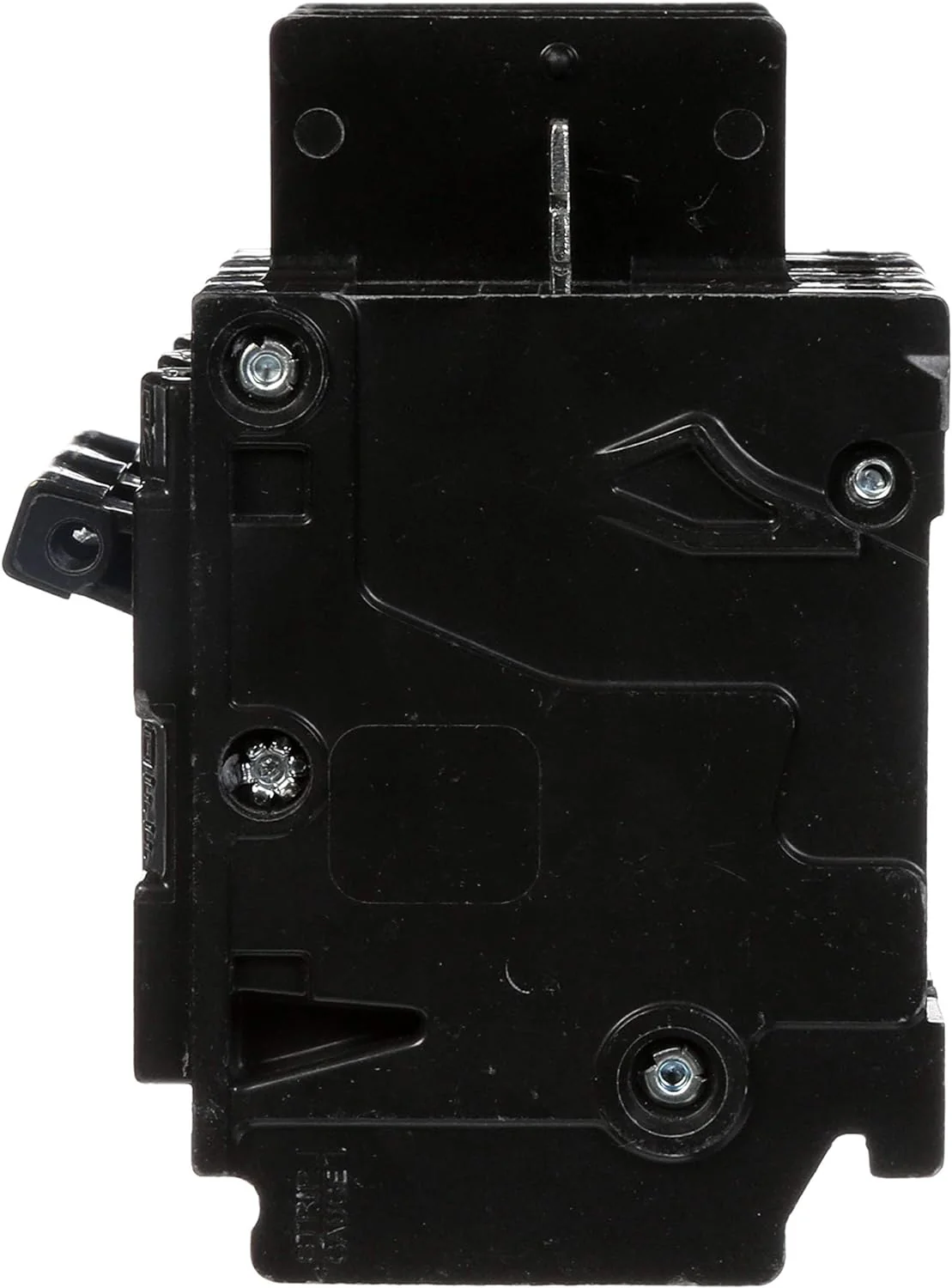

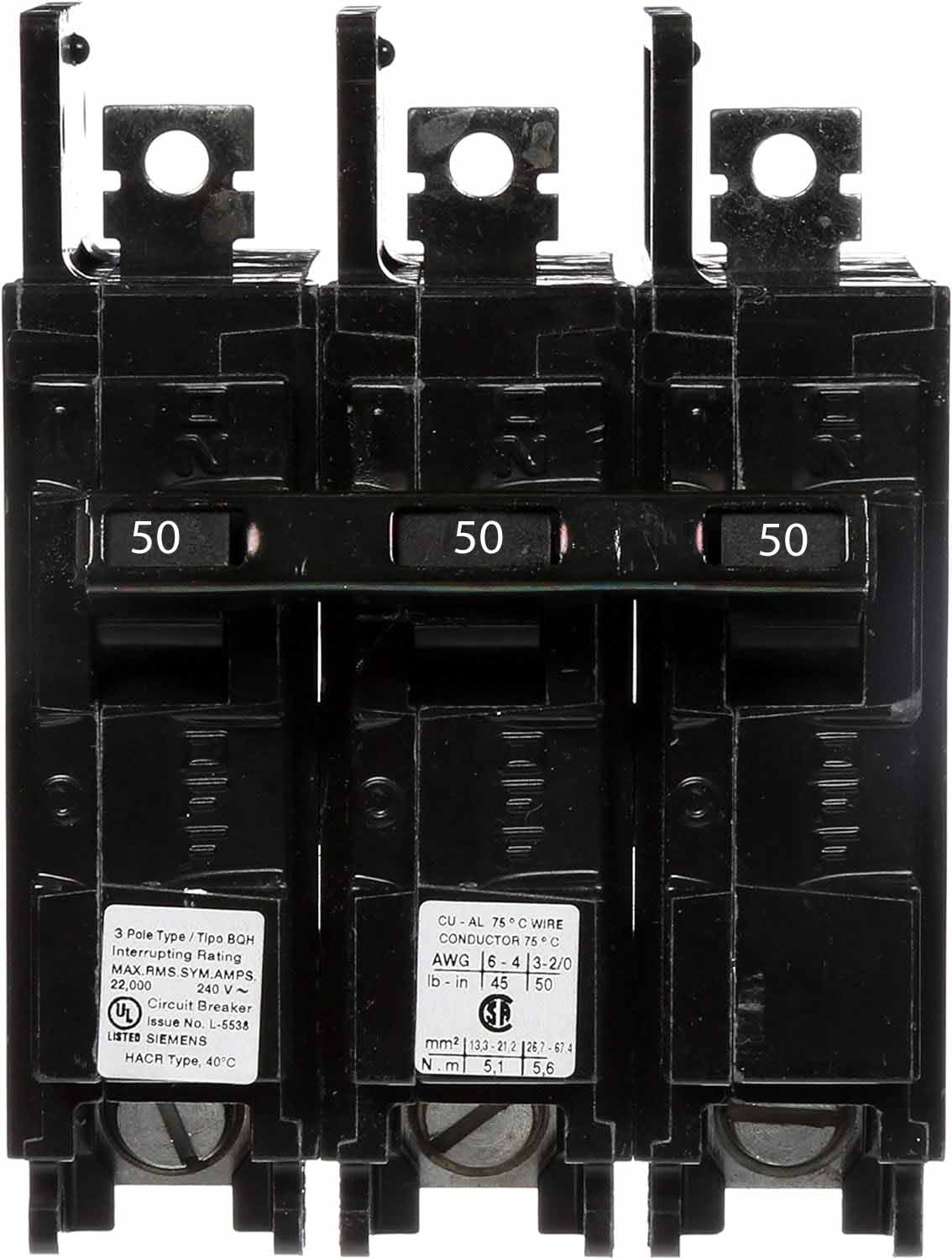

BQ3B050H - Siemens Bolt-On Molded Case Circuit Breaker
Siemens / ITE Bolt-On Circuit Breaker Its Compact And Easy to Install three poles molded case circuit breaker features a thermal magnetic over current protection system it has an interrupting rating of 22 Kiloampere at 120/240 Vac the circuit breaker is designed with a bolt-on connection type with a terminal load lug the circuit breaker has a BQ type of frame and it has a voltage rating of 240 Vac At 60 Hz it has a current rating of 50 amps at an operating temperature of 40 deg c circuit breaker is Ul listed and Csa certified
Specifications:
- Product Lifecycle (PLM): PM300:Active Product
- Net Weight (lb): 0.992 lb
- Product Group: 5201
- Compliance with the substance restrictions according to RoHS directive: not available
- Authentic Siemens Product
- Voltage Rating: 240 Volt
- 3 phase
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
BQ3B050H - Siemens Bolt-On Molded Case Circuit Breaker
Siemens / ITE Bolt-On Circuit Breaker Its Compact And Easy to Install three poles molded case circuit breaker features a thermal magnetic over current protection system it has an interrupting rating of 22 Kiloampere at 120/240 Vac the circuit breaker is designed with a bolt-on connection type with a terminal load lug the circuit breaker has a BQ type of frame and it has a voltage rating of 240 Vac At 60 Hz it has a current rating of 50 amps at an operating temperature of 40 deg c circuit breaker is Ul listed and Csa certified
Specifications:
- Product Lifecycle (PLM): PM300:Active Product
- Net Weight (lb): 0.992 lb
- Product Group: 5201
- Compliance with the substance restrictions according to RoHS directive: not available
- Authentic Siemens Product
- Voltage Rating: 240 Volt
- 3 phase
