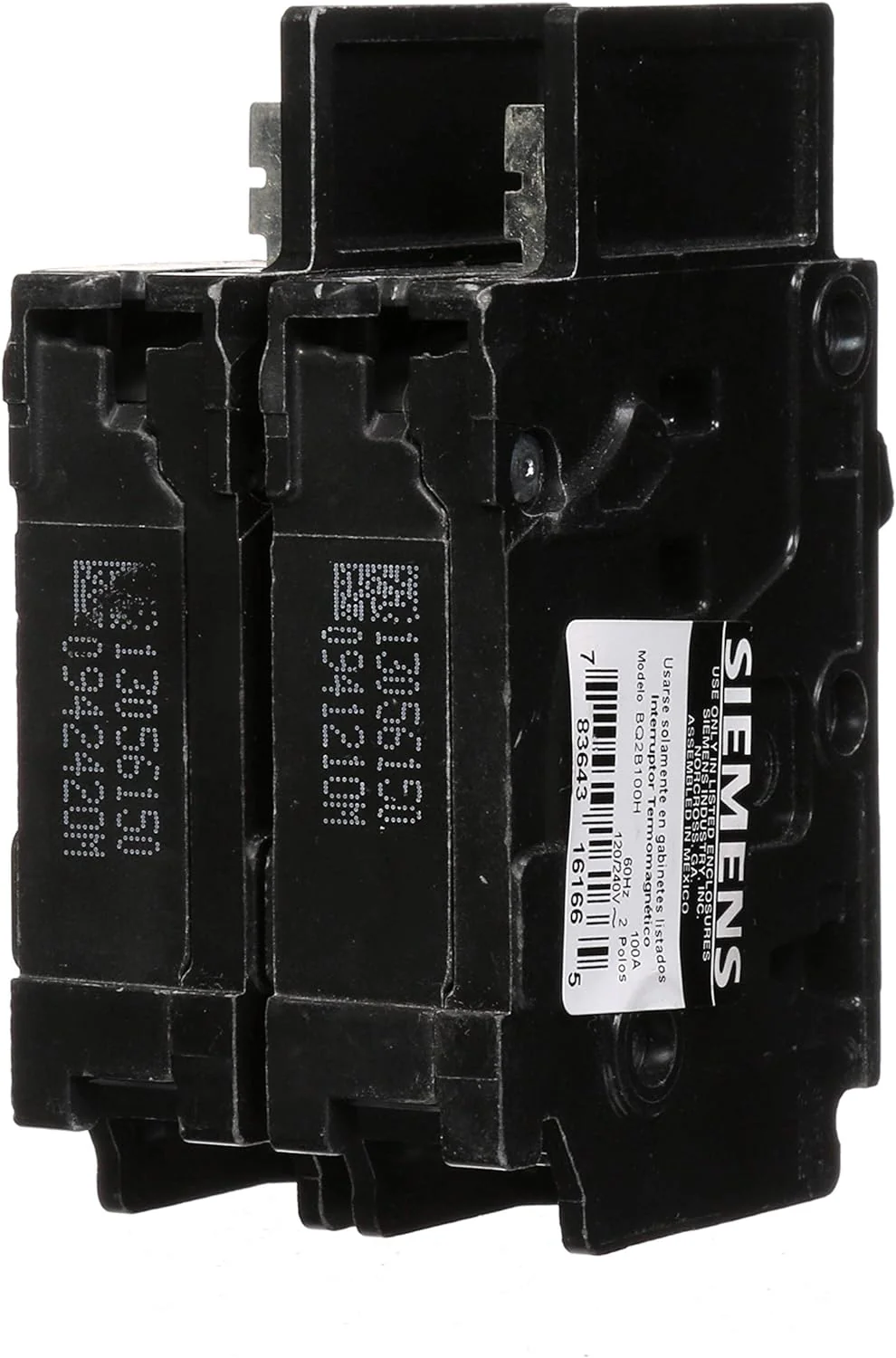

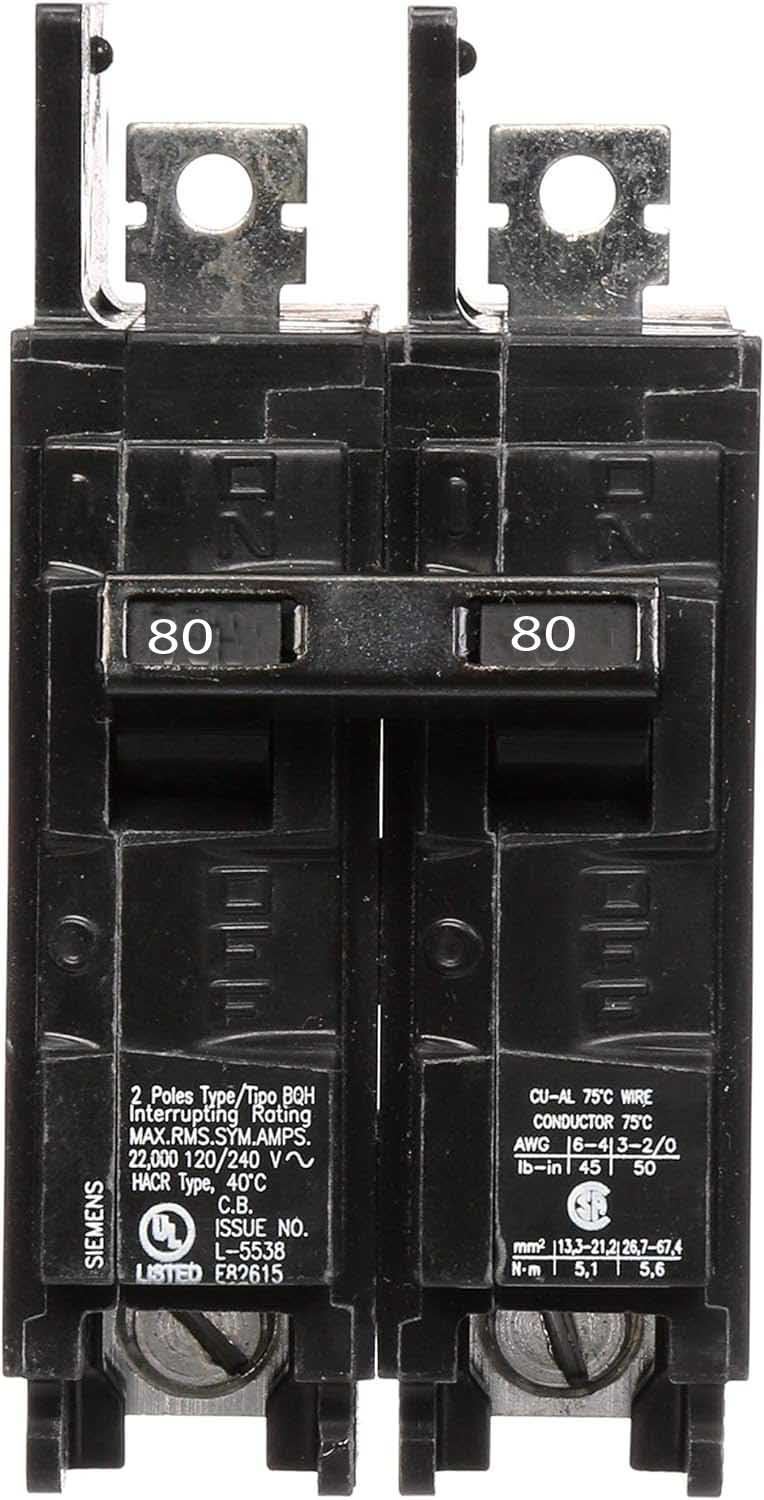

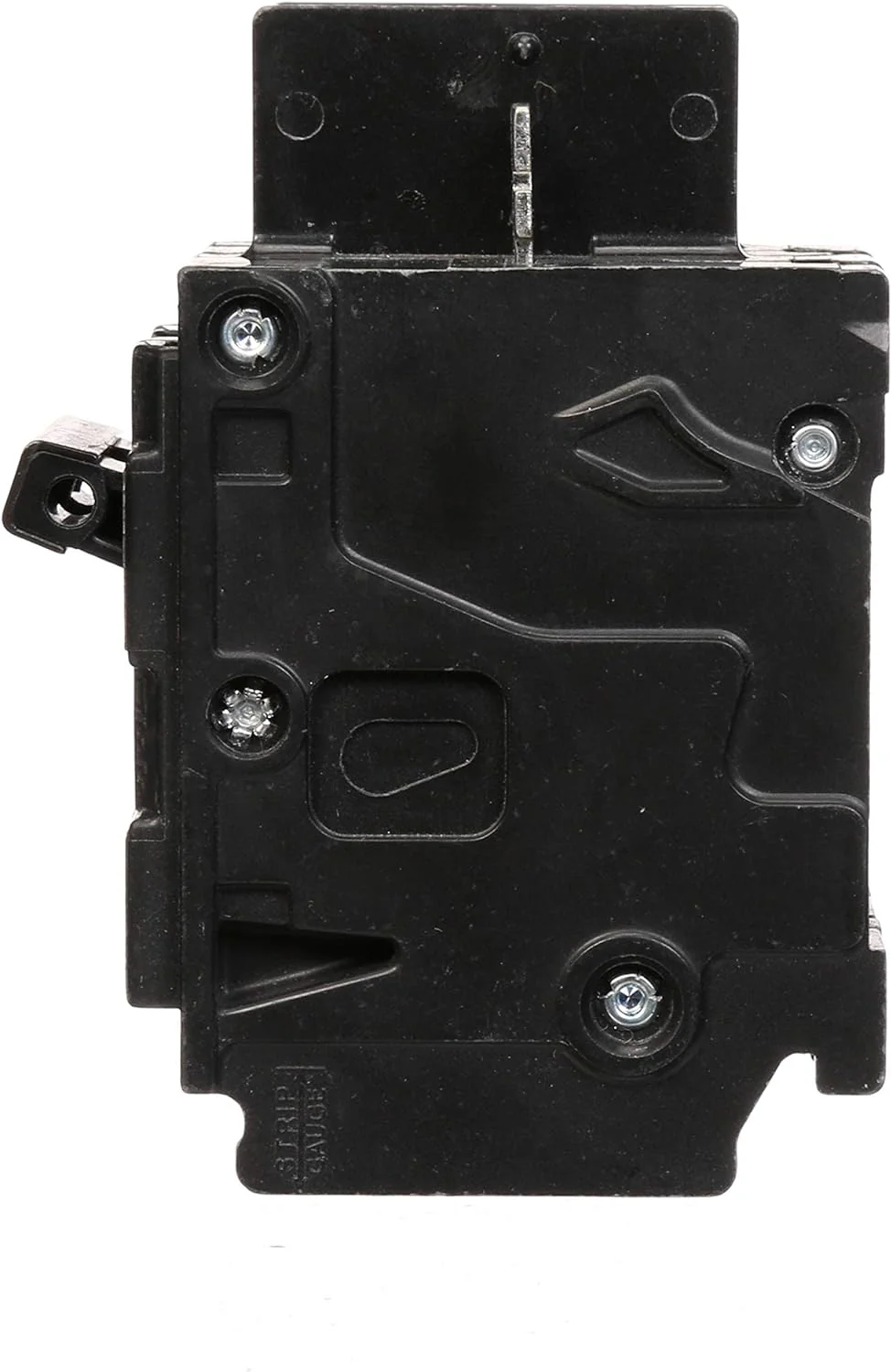

BQ2B080H - Siemens - 80 Amp Molded Case Circuit Breaker

BQ2B080H - Siemens Bolt-On Molded Case Circuit Breaker

Siemens / ITE Bolt-On Circuit Breaker Its Compact And Easy to Install two poles molded case circuit breaker features a thermal magnetic over current protection system it has an interrupting rating of 22 kilo-Amps the circuit breaker is designed with a bolt-on connection type with a terminal load lug the circuit breaker has a BQ type of frame and it has voltage rating of 120/240 Volts at a frequency of 60 Hz it has a current rating of 80 amps at an operating temperature of 40 deg c circuit breaker is Ul listed and Csa certified.

Specifications:

• Product Lifecycle (PLM): PM300:Active Product
• Net Weight (lb): 0.705 lb
• Product Group: 5201
• Compliance with the substance restrictions according to RoHS directive: not available
• Authentic Siemens Product
• Voltage Rating: 240 Volt
