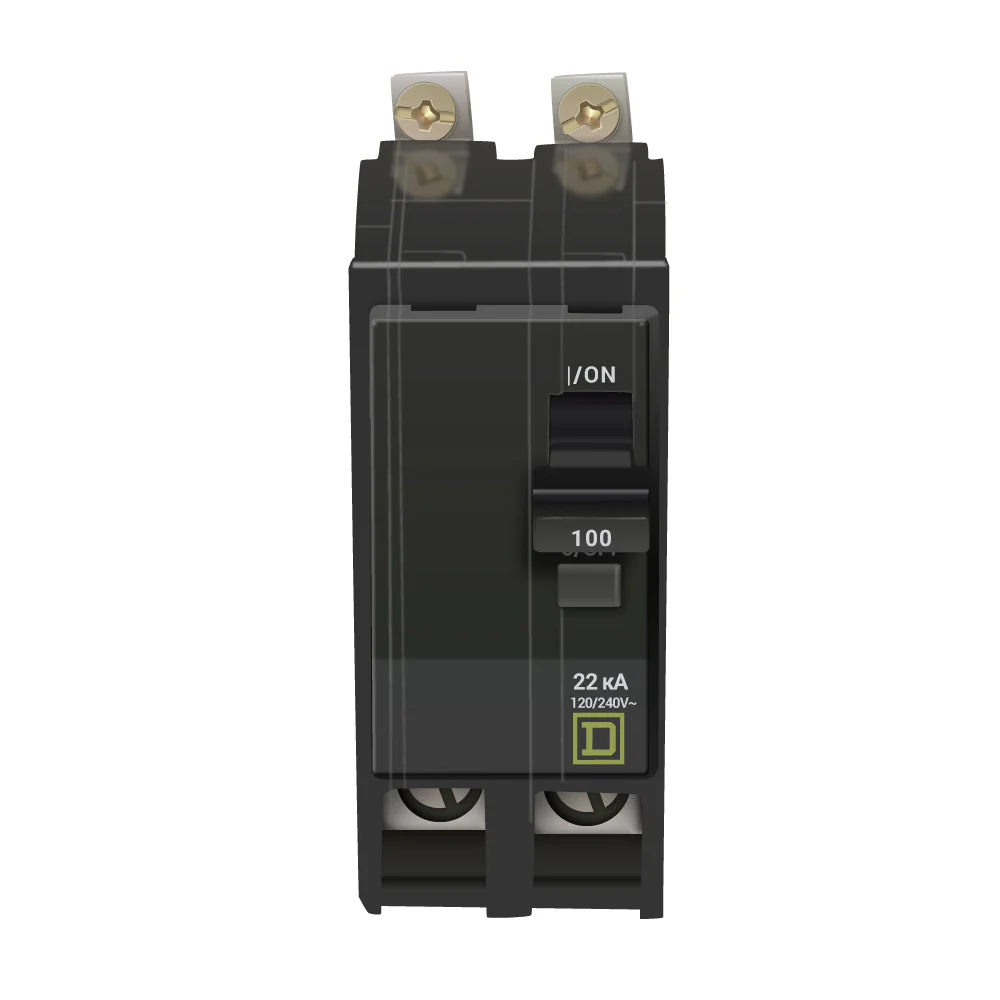

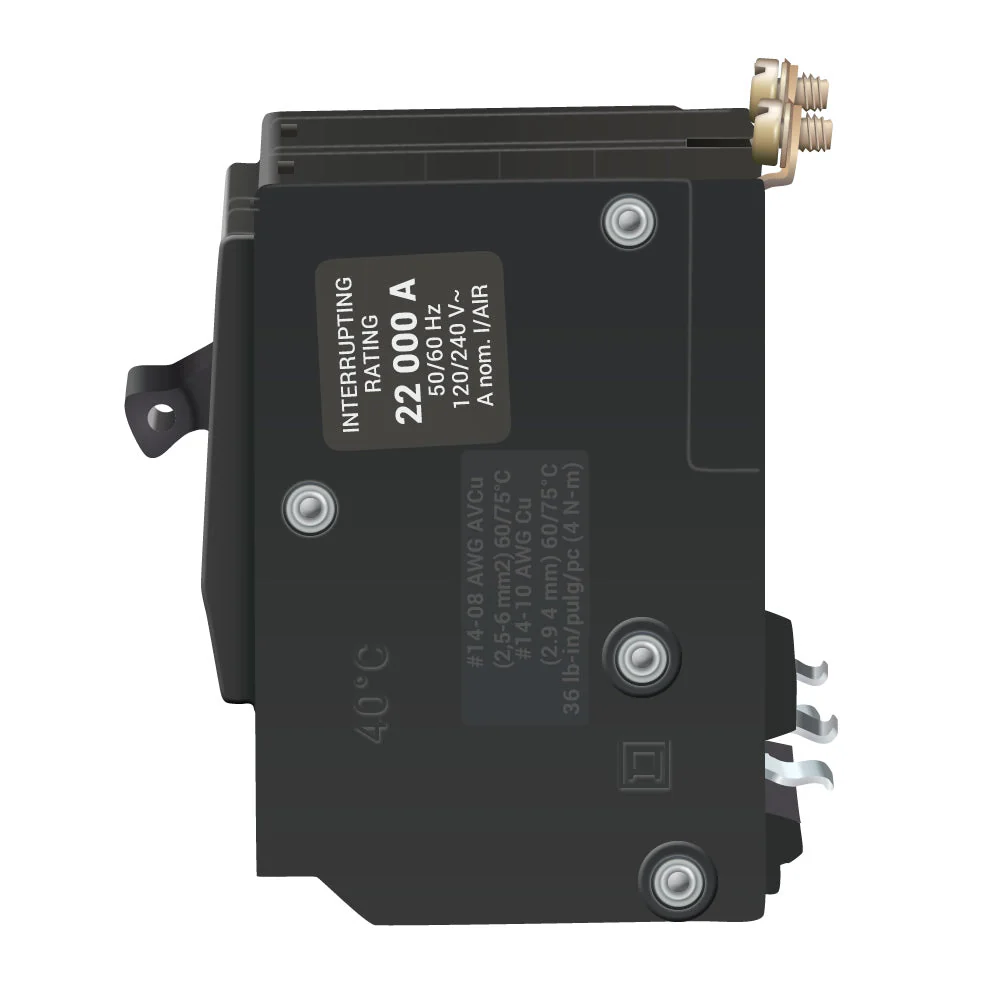

QOB2100VH - Square D - 100 Amp 22kA Circuit Breaker

QOB2100VH - Square D Bolt-On 100 Amp Breaker

Square D bolt-on circuit breaker has a voltage rating of 120/240 Volts current rating of 100 Amps and interrupting rating of 22 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 4 - 300 AWG.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 100 A
• System Voltage: 120 V AC, 120/240 V AC, 240 V AC
• Mounting Type: Bolt-on
• Number of Poles: 2P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Box lugs
• Inturrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
• Number of Panel Spaces: 2
• Wire Size: AWG 4...AWG 2/0 (copper or aluminium)
• Certifications: CSA, UL listed
• Ambient Rating: 104 Degree F (40 Degree C)
• Authentic Square D Product
• Dimensions (H x W x L): 3.5" x 1.5" x 2.91"

Alt model: q0b2100vh
