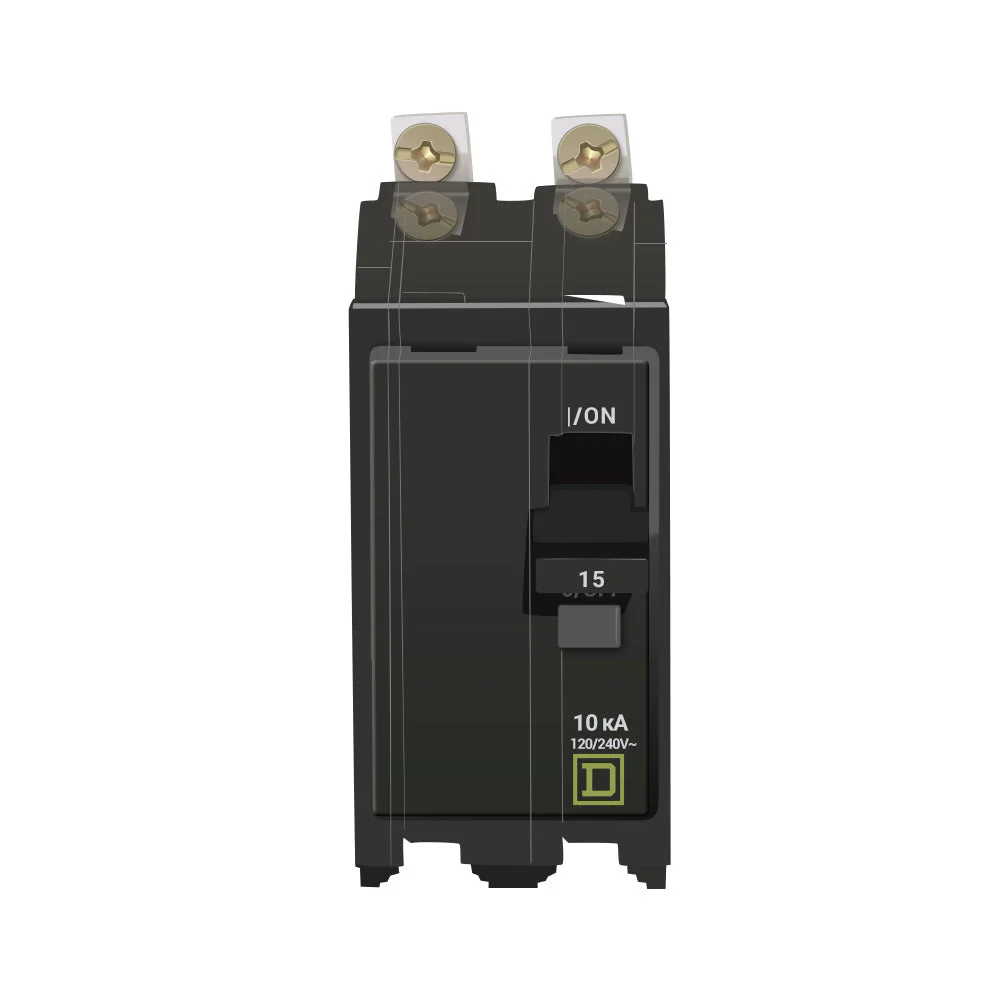

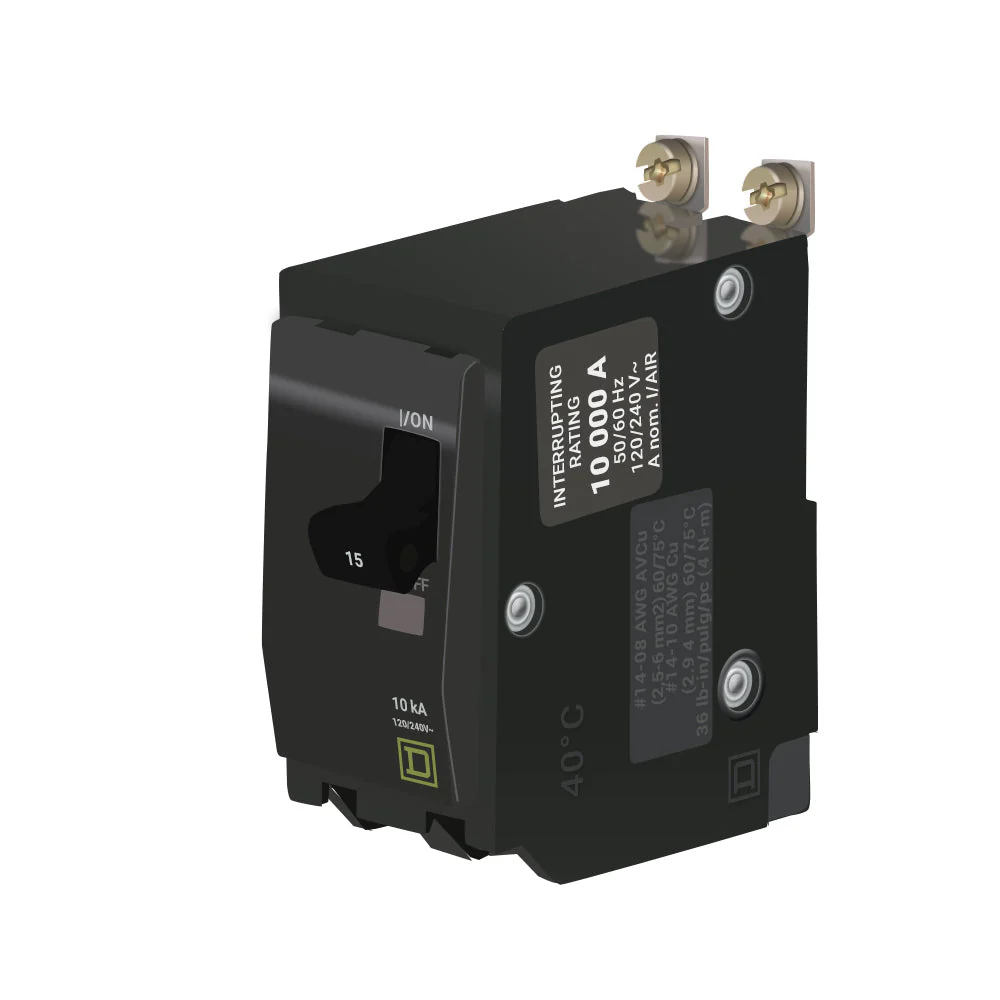

QOB215 - Square D - 15 Amp Circuit Breaker

QOB215 - Square D Bolt-On 15 Amp Breaker

Square D miniature circuit breaker has a voltage rating of 120/240 Volts current rating of 15 Amps and interrupting rating of 10 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 14 - 8 AWG. It has bolt on mounting and provides protection against over current.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 15 A
• System Voltage: 120 V AC, 120/240 V AC, 48 V DC
• Mounting Type: Bolt-on
• Number of Poles: 2P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Pressure plate
• Number of Panel Spaces: 2
• Wire Size: AWG 14...AWG 8 (copper or aluminium)
• Height: 3 in
• Depth: 2.91 in
• Width: 1.5 in
• Ambient Rating: 104 Degree F (40 Degree C)
• Authentic Schneider Electric / Square D Product
• Dimensions (H x W x L): 3" x 1.5" x 2.91"

Alt model: q0b215
