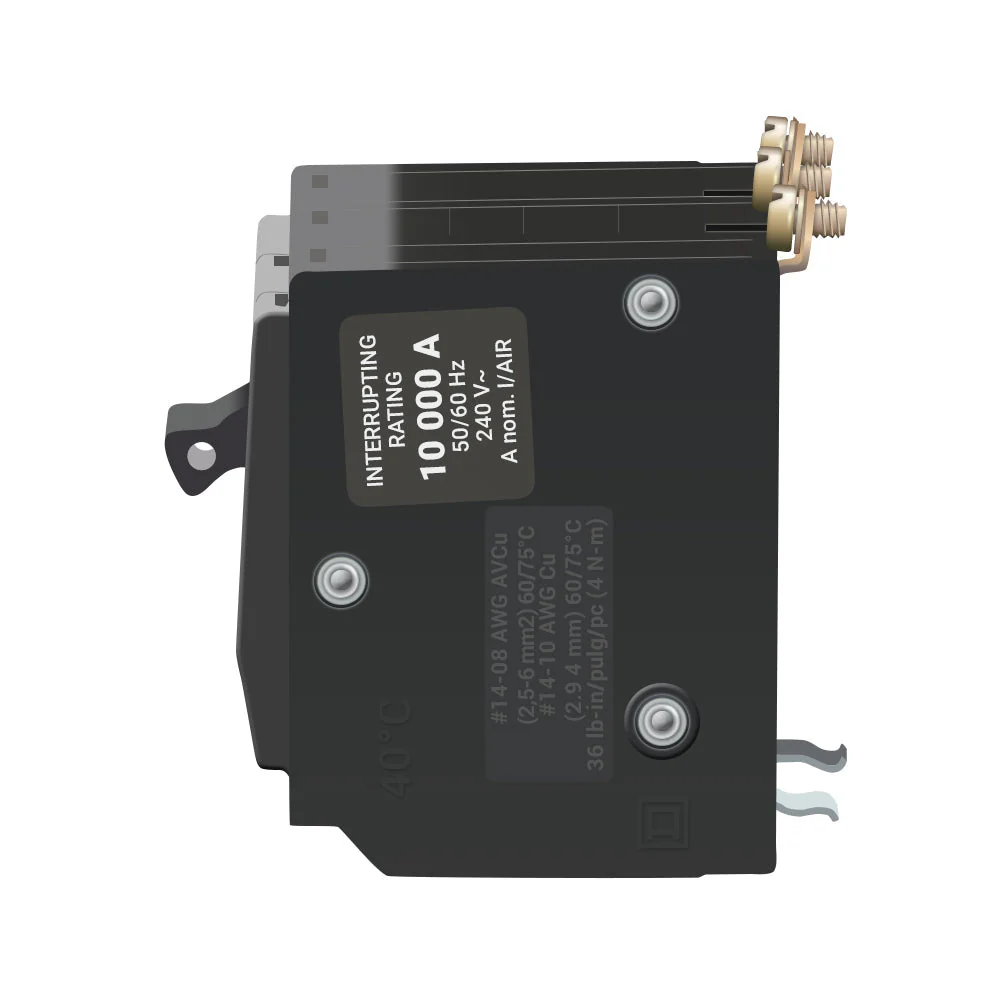

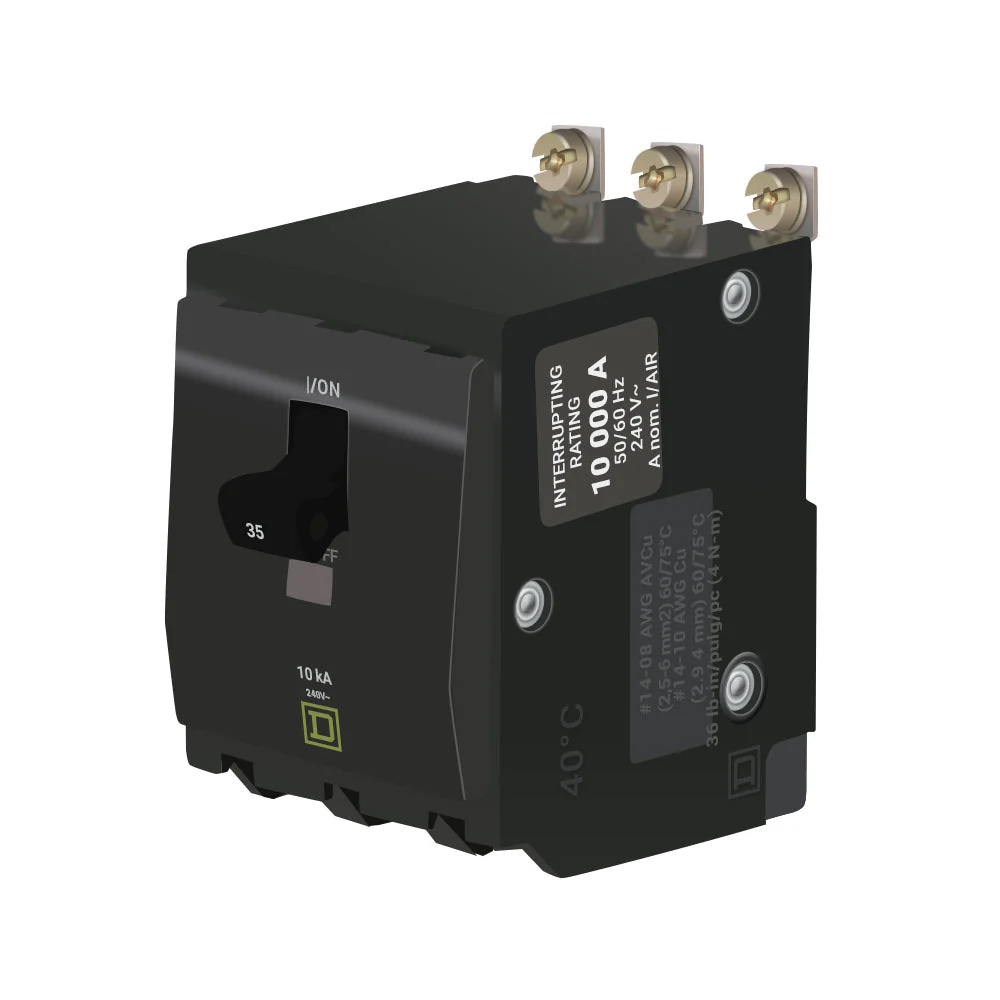

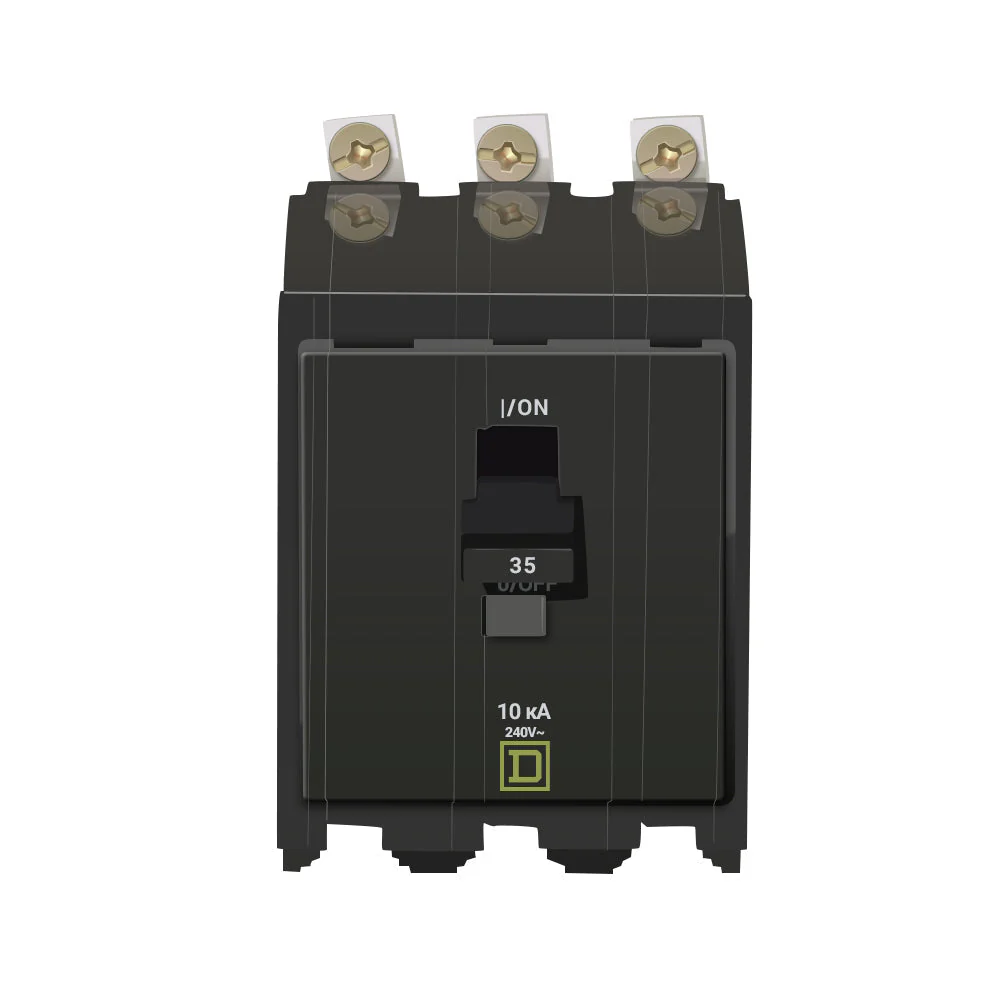

QOB335 - Square D - 35 Amp Circuit Breaker

QOB335 - Square D Bolt-On 35 Amp Breaker

Schneider Electric/Square D Miniature circuit breaker with Visi-Trip indicator has an integrated pressure plate to offer protection against damage to flexible lines. The 3-Pole circuit breaker has voltage rating of 240 VAC at 50/60 Hz and current rating of 35 Amps. It has interrupting rating of 10 kilo-Amps at 240 VAC and 5 kilo-Amps at 48 VDC.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 35 A
• System Voltage: 120 V AC, 120/240 V AC, 240 V AC, 48 V DC
• Mounting Type: Bolt-on
• Number of Poles: 3P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Pressure plate
• Number of Panel Spaces: 3
• Wire Size: AWG 14.AWG 8 (copper or aluminium)
• Authentic Schneider Electric / Square D Product

• Dimensions (H x W x L): 3.12" x 2.25" x 2.91"
• 3 phase

Alt model: q0b335
