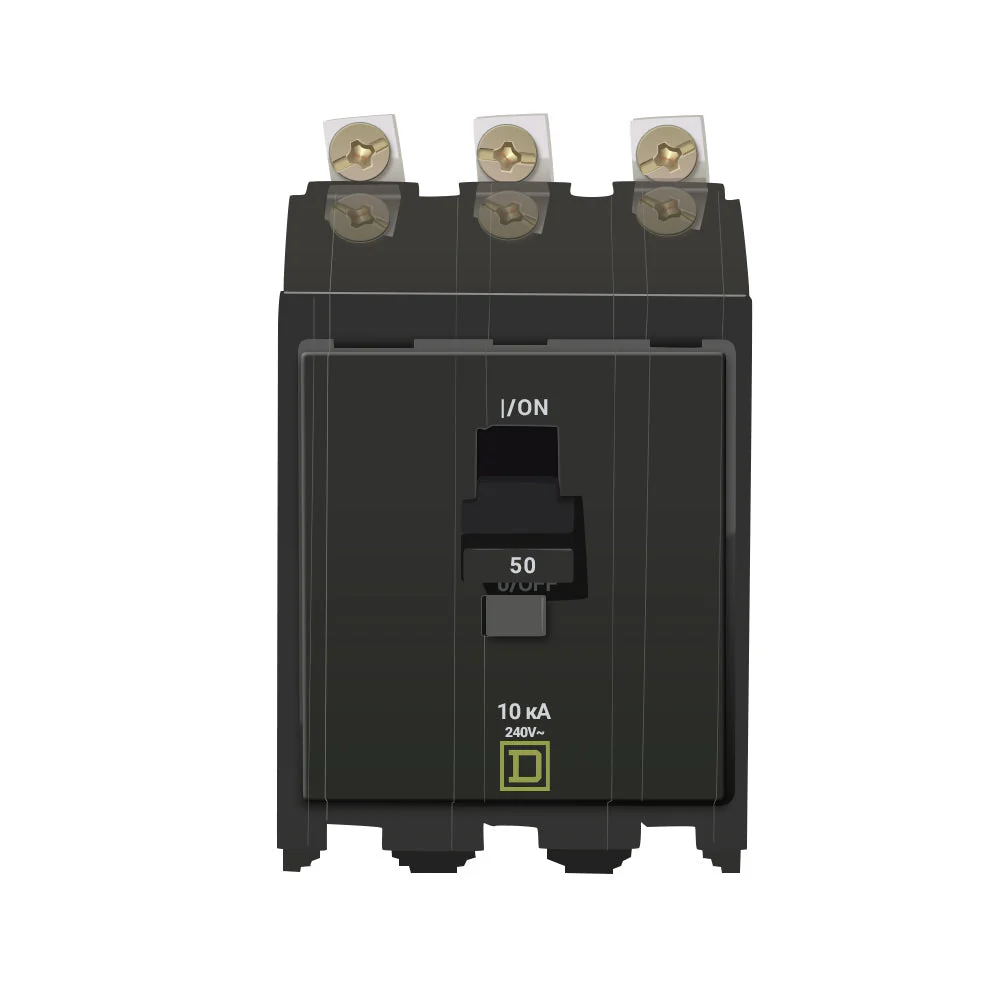

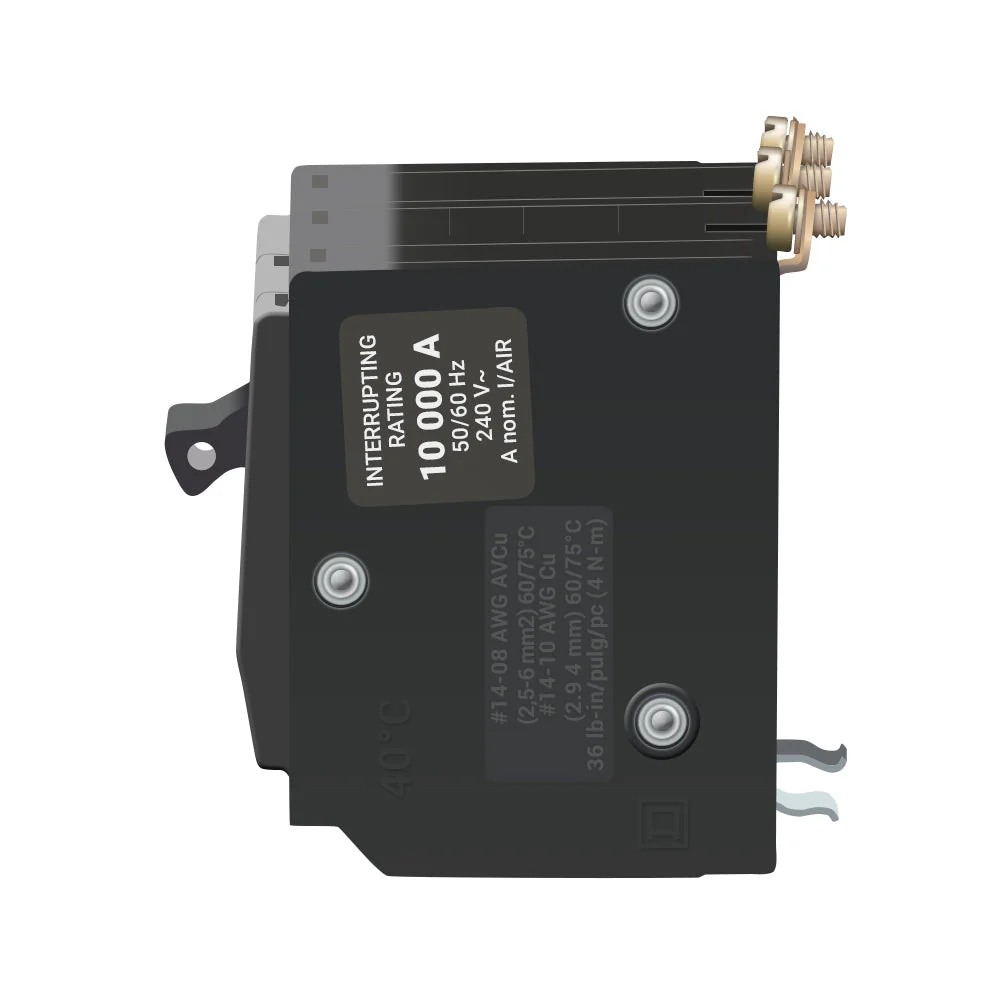

QOB350 - Square D - 50 Amp Circuit Breaker

QOB350 - Square D Bolt-On 50 Amp Breaker

Square D bolt-on circuit breaker has a voltage rating of 120/240 Volts current rating of 50 Amps and interrupting rating of 10 kilo-Amps. The 3-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 8 - 2 AWG.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 50 A
• System Voltage: 120 V AC,120/240 V AC,240 V AC,48 V DC
• Mounting Type: Bolt-on
• Number of Poles: 3P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Box lugs
• Authentic Schneider Electric / Square D Product
• 3 phase

Alt model: q0b350
