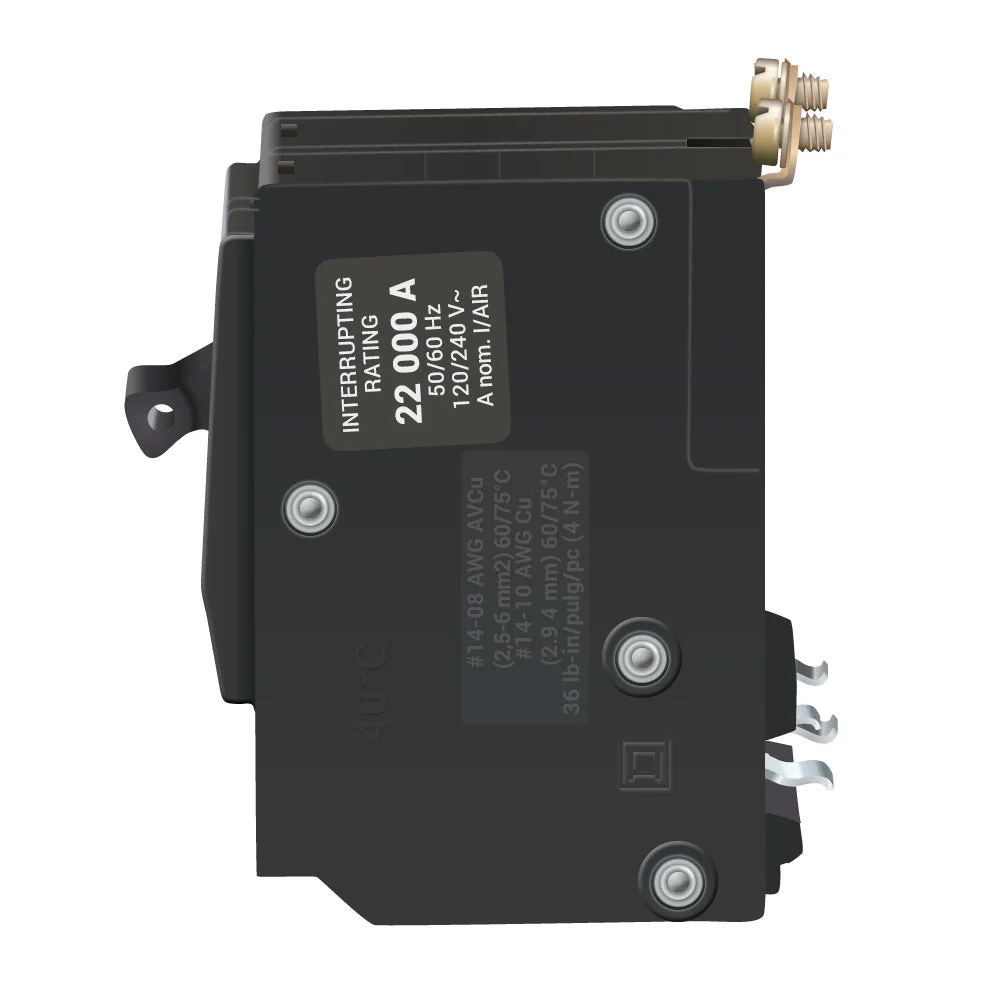

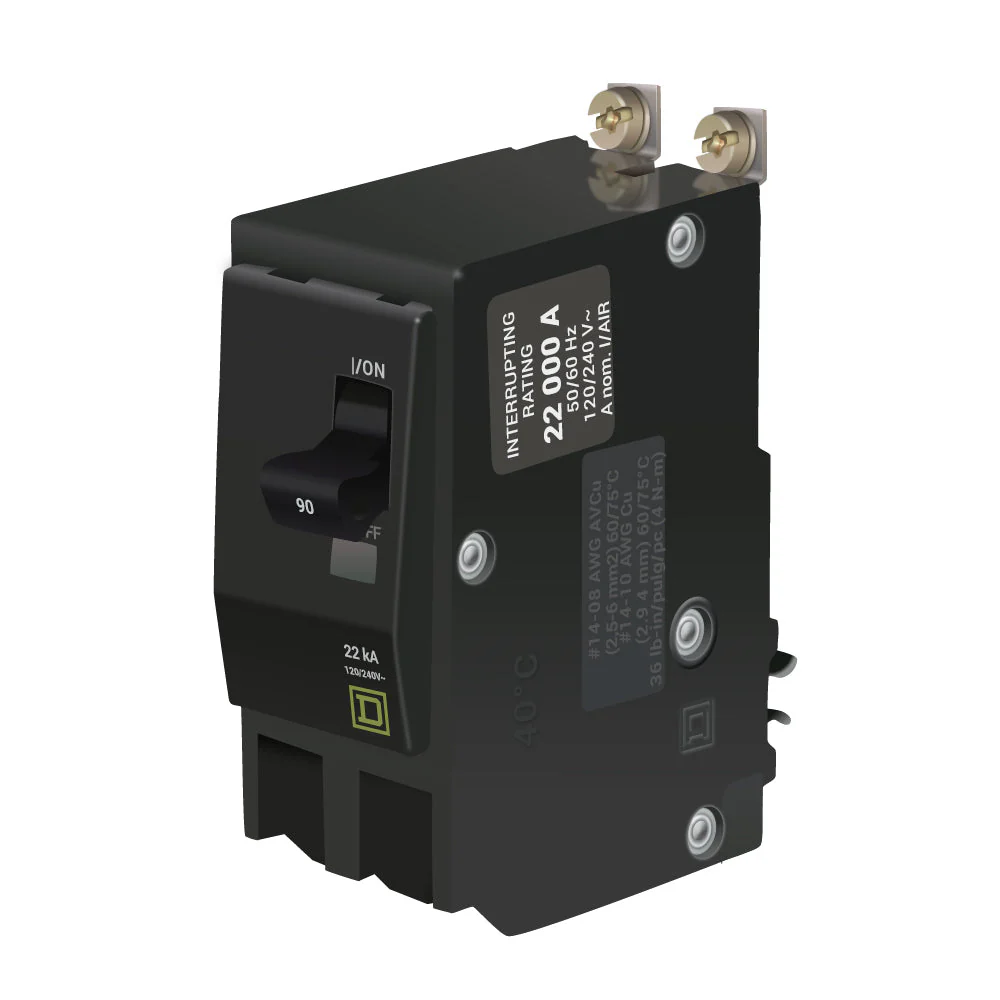

QOB290VH - Square D - 90 Amp 22kA Circuit Breaker

QOB290VH - Square D 90 Bolt-On 90 Amp Breaker

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 90 A
• System Voltage: 120 V AC, 120/240 V AC, 240 V AC
• Mounting Type: Bolt-on
• Number of Poles: 2P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Box lugs
• Inturrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
• Number of Panel Spaces: 2
• Wire Size: AWG 4...AWG 2/0 (copper or aluminium)
• Height: 3.5 in
• Depth: 2.91 in
• Width: 1.5 in
• Certifications: CSA, UL listed
• Ambient Rating: 104 Degree F (40 Degree C)
• Authentic Square D Product
• Dimensions (H x W x L): 3.5" x 1.5" x 2.91"

Alt model: q0b290vh
