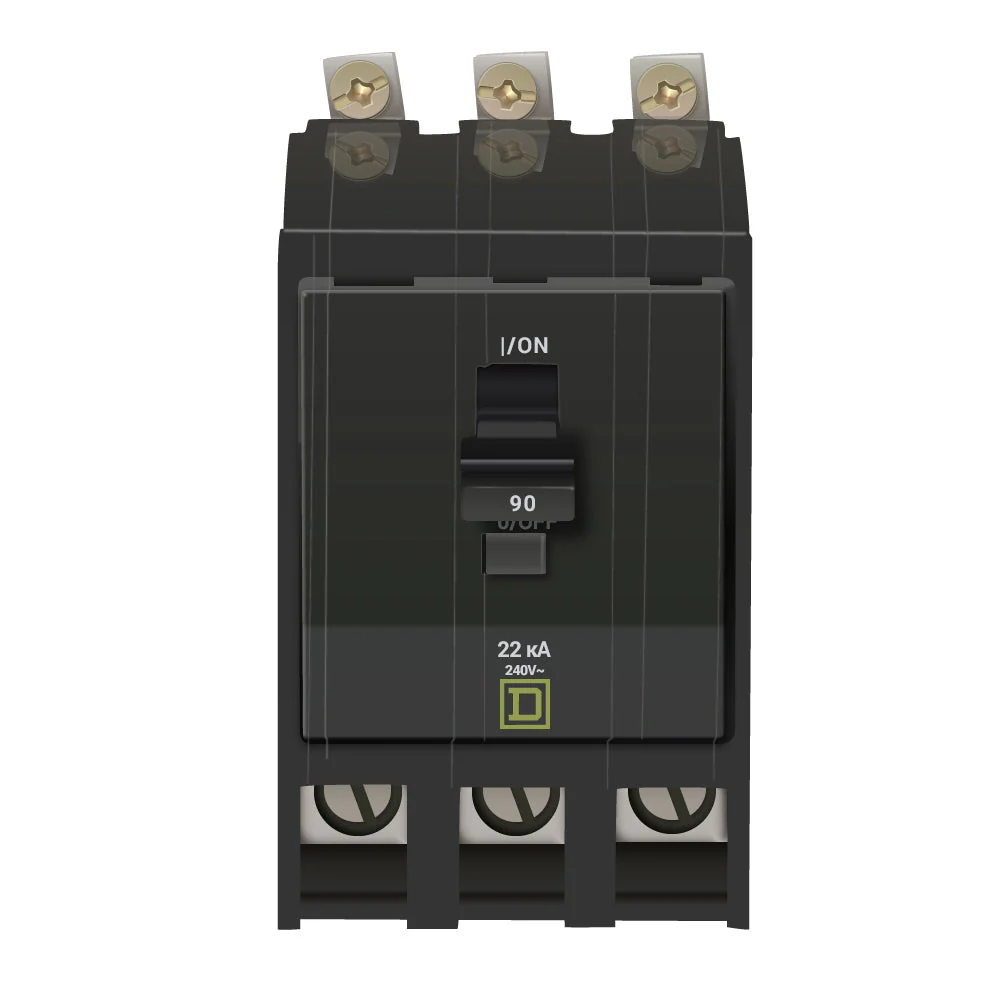

QOB390VH - Square D - 90 Amp 22kA Circuit Breaker

QOB390VH - Square D Bolt-On 90 Amp Breaker

Square D QOB series three pole 90 ampere bolt-on molded case miniature circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 22 kiloampere at 240V functions long-time and instantaneous suitable for QOB series load centers.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 90 A
• System Voltage: 120 V AC, 120/240 V AC, 240 V AC
• Mounting Type: Bolt-on
• Number of Poles: 3P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Box lugs
• Inturrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
• Number of Panel Spaces: 3
• Wire Size: AWG 4...AWG 2/0 (copper or aluminium)
• Certifications: CSA, UL listed

• Ambient Rating: 104 Degree F (40 Degree C)
• Authentic Square D Product
• Dimensions (H x W x L): 3.5" x 2.25" x 2.91"
• 3 phase

Alt model: q0b390vh
