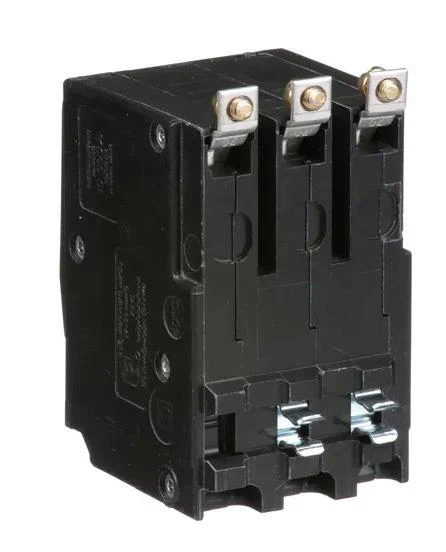

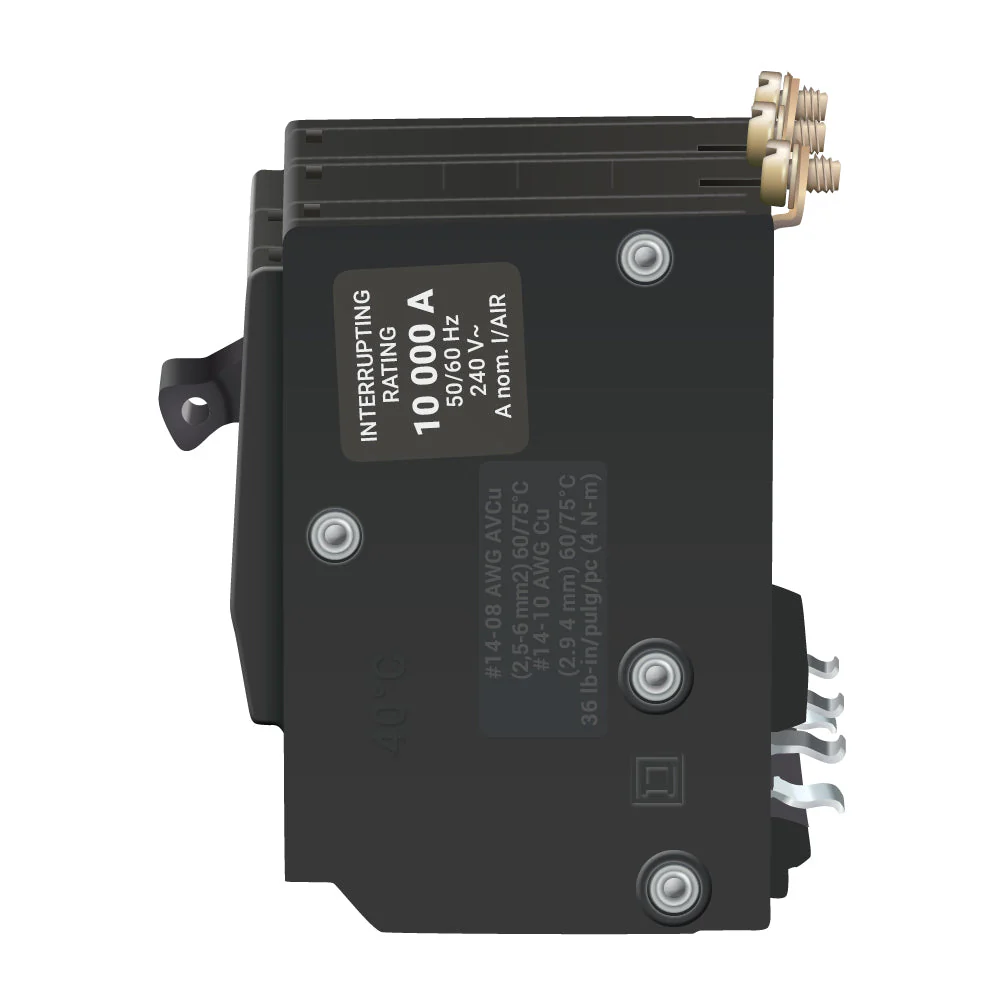

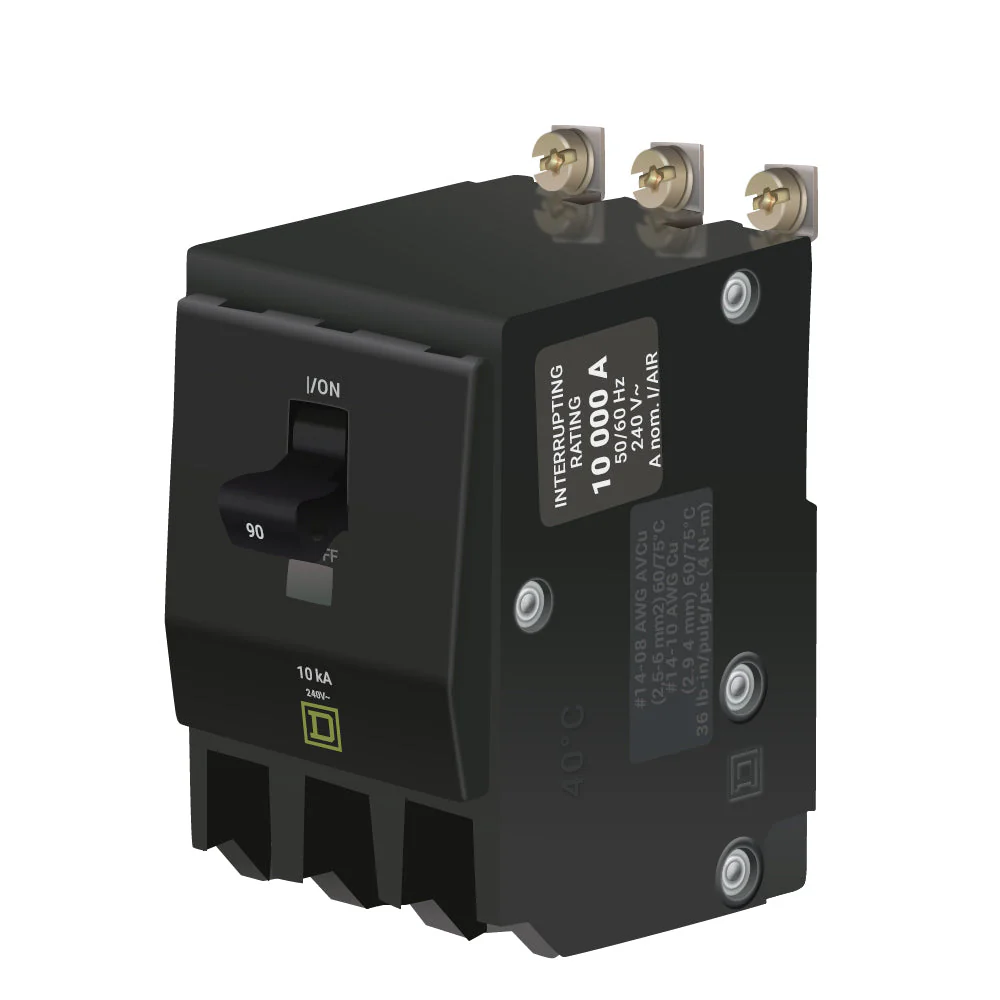

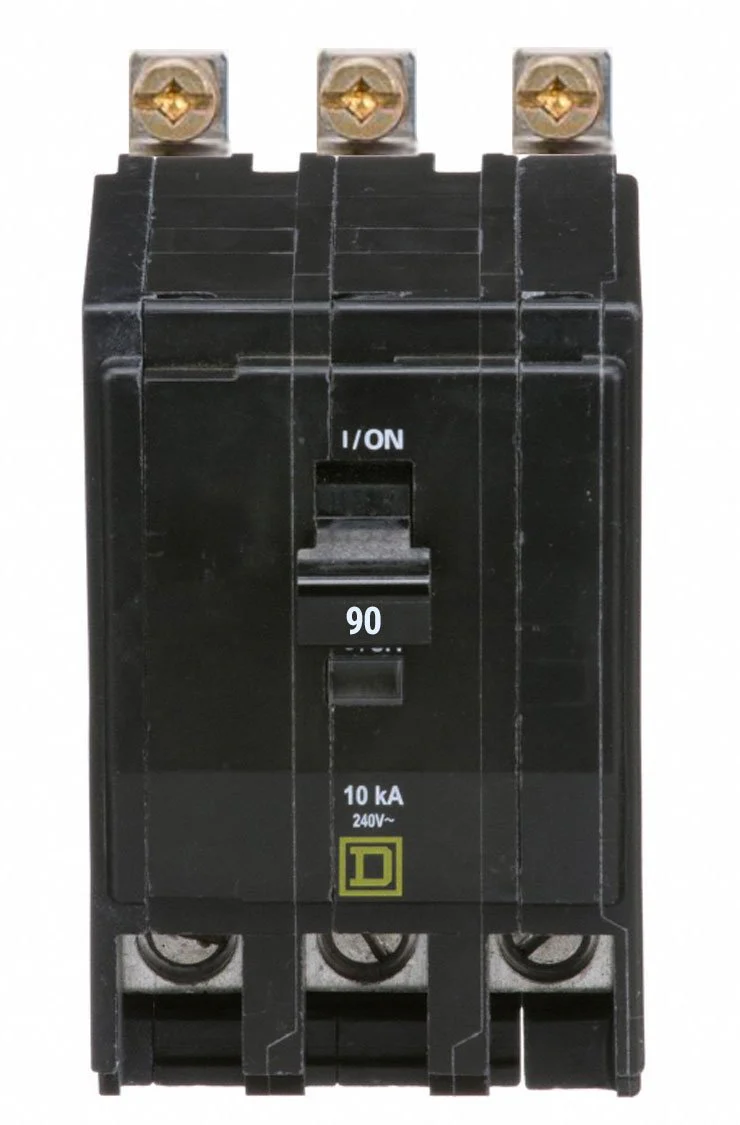

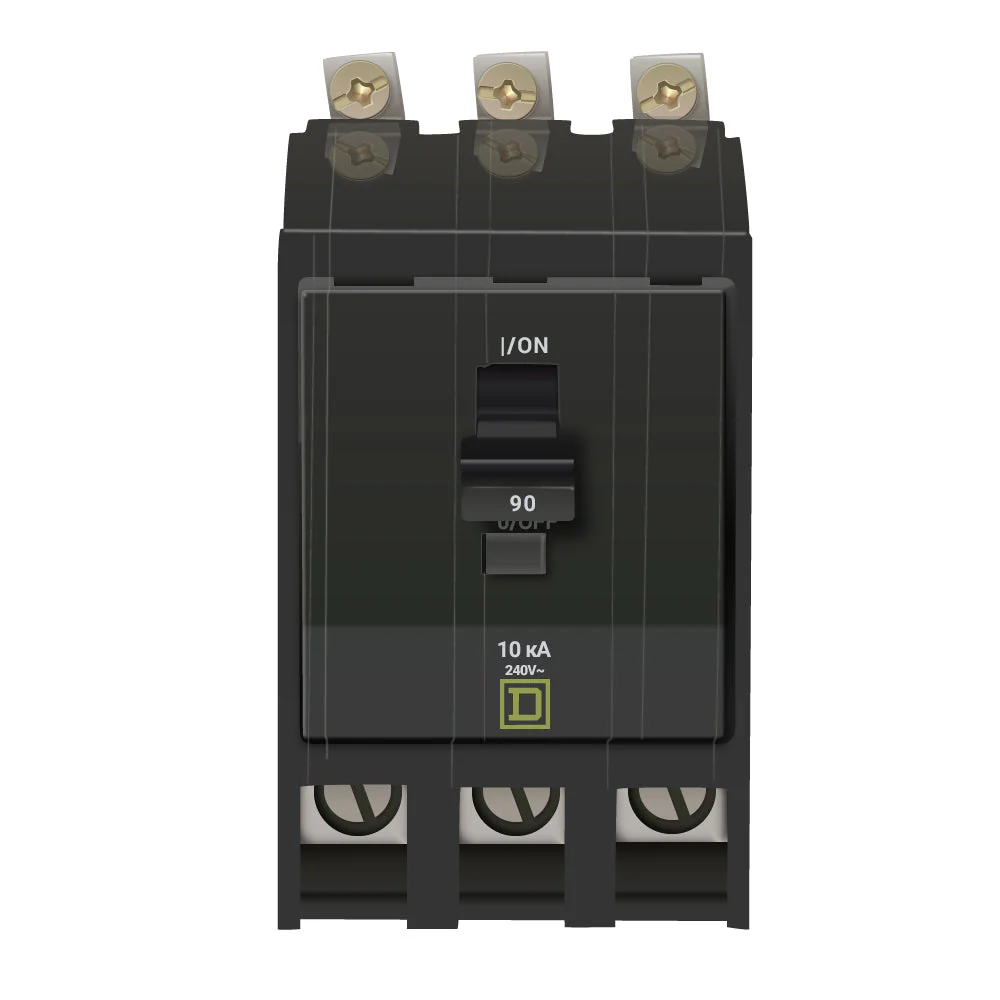

QOB390 - Square D - 90 Amp Circuit Breaker

QOB390 - Square D Bolt-On 90 Amp Breaker

Schneider Electric/Square D Miniature circuit breaker with Visi-Trip indicator has box-type lugs to accommodate 4 - 2/0 AWG copper and aluminum wires. The 3-Pole circuit breaker has voltage rating of 240 VAC current rating of 90 Amps and short-circuit current rating of 10 kilo-Amps.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 90 A
• System Voltage: 120 V AC,120/240 V AC, 240 V AC
• Mounting Type: Bolt-on
• Number of Poles: 3P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Box lugs
• Authentic Schneider Electric / Square D Product
• 3 phase

Alt model: q0b390
